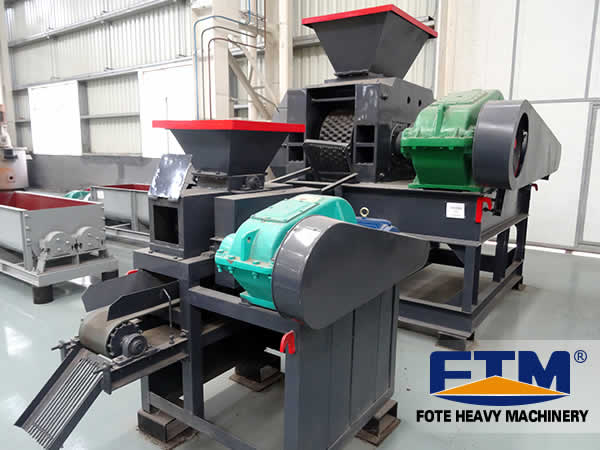

Ore Powder Briquetting Machine

Ore Powder Briquetting Machine

Production capacity: 0.8-15t/h

Applied material: Ore Powder, coal, gypsum, limestone, charcoal, slag, iron, aluminum, blue carbon, powder, kaolin, clay, etc.

Email: sales@sinofote.com

Enter email to free download PDF

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Brief Introduction to Ore Powder Briquetting Machine

A mineral powder briquette machine can press materials into balls such as iron powder, mineral powder, oxidized scale, steel slag, refractory material, coal powder and coke powder; sludge, dust, mud pools, iron powder, aluminum ash powder, ceramic materials and so on. It is able to reduce dust, control bulk density, recycle and improve the transporting characteristics in the production.

Finished Products of Ore Powder Briquetting Machine

Application Area of Fote Ore Powder Briquetting Machine

Fote ore powder briquetting machine is mainly used in industries of coal, mining, metallurgy, refractory matter, chemicals, building materials, power, energy, transportation, heating and so on.

Ore Powder Briquetting Machine

Ore Powder Briquetting Machine

Ore Powder Briquetting Machine

Main structures and working principles of Fote ore powder briquetting machine

The mineral powder briquette machine is mainly composed of feeding part, transmission part and briquetting part. Working forms of all kinds of mineral powder briquette machines are basically the same: electromagnetic speed motor drives the main engine through the belt pulley, cylindrical gear reducer and stick pin coupling. Driving shaft and the driven shaft operate synchronously with the help of the open gear. Bearing pedestal of the driven shaft is equipped with a hydraulic device that can protect the pressure roller from being damaged.

Ore Powder Briquetting Machine

Requirements for raw materials

1. Material particle size should be between 80-200 mesh.

2. Metal objects that will damage roll skin surface are not allowed.

3. Feed should be adequate so that the balling rate can be guaranteed.

How to extend lifespan of Fote ore powder briquetting machine?

To extend the service life of the equipment is easy to realize once you do as follows:

1. Keep the motor clean. Do not exceed the rated load current. Check the bearing temperature and oil spilling condition. Refuel the machine in accordance with the requirement, and make sure the motor temperature should not overrate.

2. The roll skin should be kept clean and free of residue.

Ore Powder Briquetting Machine

3. Don’t let it rust. You can use anti-rust paint, chemical rust removal, plating, hot dip, high-pressure water abrasive blasting and other methods.

We have rich experience and advanced technology to produce mineral powder briquette machines. Our chromium ore powder briquetting machines get the customer's affirmation from all over the world. Fote ore powder briquetting machine with reasonable price is your ideal choice.

Email: vip@sinoftm.com

 Product model Roller diameter (mm) Production capacity (t/h) Motor power (kw) Pressure regulating device Spherical size
290 290 0.8-1.5 5.5 Constant voltage hydraulic pressure User defined
360 360 2-3 7.5 Constant voltage hydraulic pressure User defined
450 450 3-4 13 Constant voltage hydraulic pressure User defined
500 500 4-5 18 Constant voltage hydraulic pressure User defined
650 650 5-7 25 Constant voltage hydraulic pressure User defined
850 850 7-9 30-75 Constant voltage hydraulic pressure User defined
1000 1000 11-15 75-130 Constant voltage hydraulic pressure User defined
